TS1000

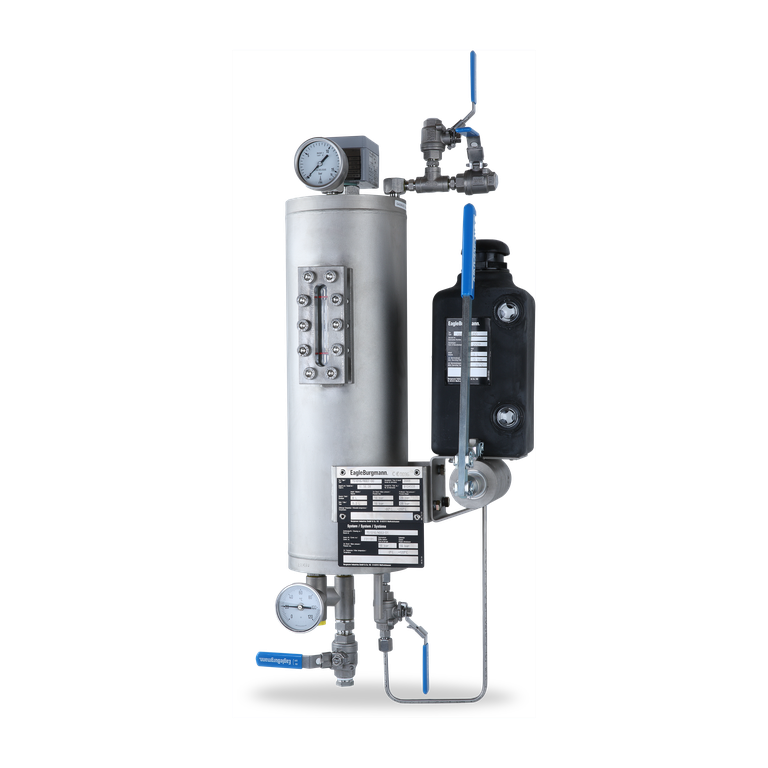

With the EagleBurgmann TS1016 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. The TS1016 thermosiphon vessel is available with flat ends, sight-glasses for level monitoring and with cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets. The modular system allows the TS1016 vessels to be combined with a wide range of system components such as, e.g. level switch, circulation pump, hand refill pump, thermometer, base frame, etc.



Technical informations

• - Modular system: combination with a wide range of system components possible
• - Vessel made of 1.4571 stainless steel / borosilicate sight-glasses: suitable for universal applications
• - All system connections on the face sides
• - Low space requirements because of compact design



The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:

      - to pressurize the buffer chamber

      - leakage compensation

      - buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system

      - to cool the seal

      - to selectively absorb product leakage and prevent dry running (tandem arrangement)
