SMAG

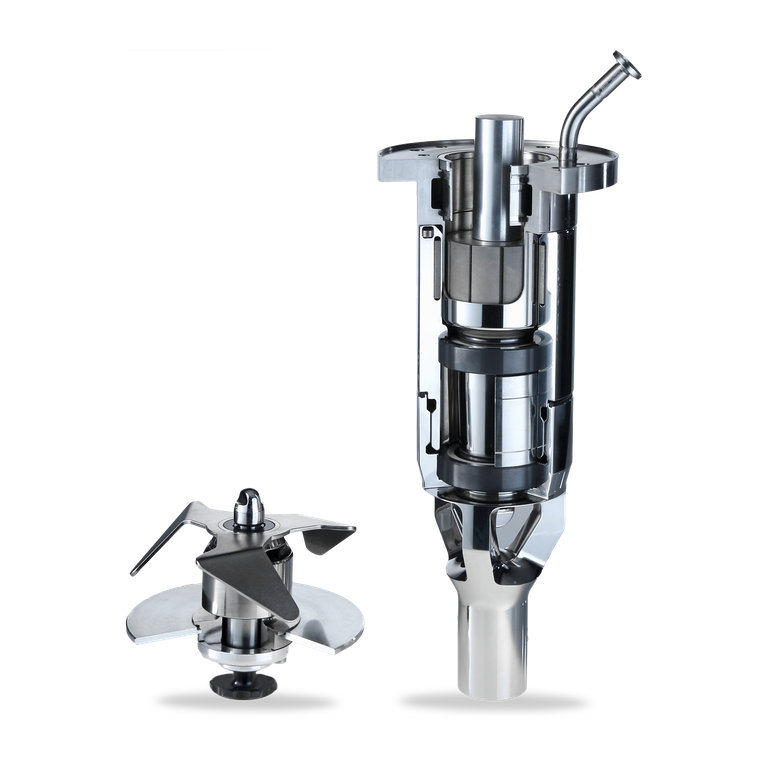

Magnetic couplings of the SMAK series are used to transfer torque into mixers and agitators. Top drive, bottom drive or lateral drive. Dangerous or precious media remain isolated in the closed vessel.



Technical informations

Shaft diameter: d = ... 40 mm (1,57")
Pressure: vacuum ... 7 bar (102 PSI)
Temperature: t = -40 °C ... +150 °C...(-40 °F ... +302 °F)
Speed: n = ... 400 min^-1
Chemical resistance: pH 0 … 14
Viscosity: 0.3 … 5,000 mPas (SiC)
Torque: max. 270 Nm (bottom drive); 330 Nm (top drive)
Solids: max. 0.1 mm; max. 5 % by weight; grain hardness max. 700 HV



The power transmission occurs contact-free through magnets from the drive shaft to the product wetted output shaft. Between the two rotating parts is the can wich is bolted to the container.
