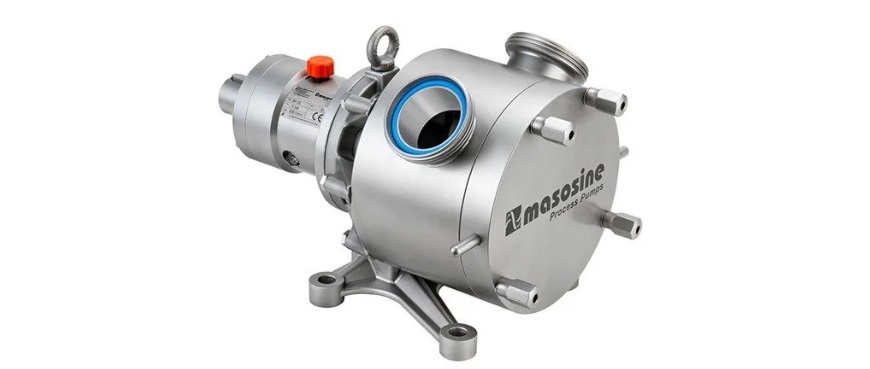

Proces pump SPS

SPS pumps delivers a low shear, gentle pumping action that safely transfers delicate products without risk of degradation.

Suitable for industrial applications up to 15 bar pressure at flows up to 99,000 L/h SPS is able to transfer products with viscosities from 1 cP to 8 million cP with powerful suction up to 0.85 bar.

Capable of handling soft solids safely up to 60 mm, maintaining end product quality and delivering high yield rates.

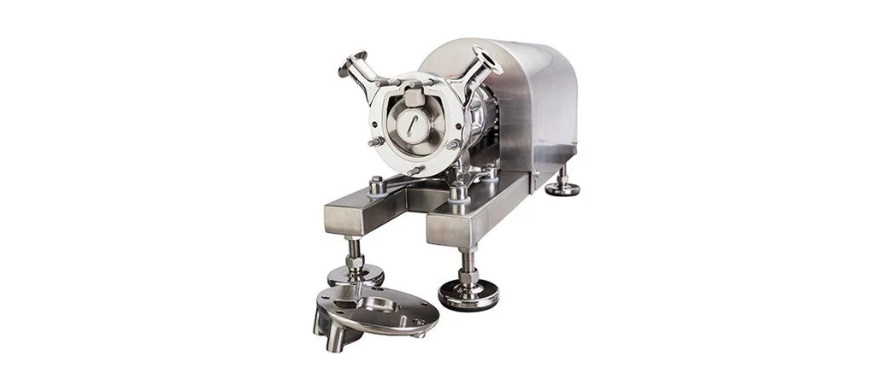

Maintenance takes minutes and can be performed in-place by a line operative. SPS series pumps have 20 years warranty on housing and front cover.

• - Superior viscous handling
• - Flexible configuration of housing, nozzle type, size orientation, drive and baseplate
• - Hygienic CIP and SIP capability
• - FDA and EC 1935/2004 compliance
• - Operating temperatures up to 180 °C

Technical informations
