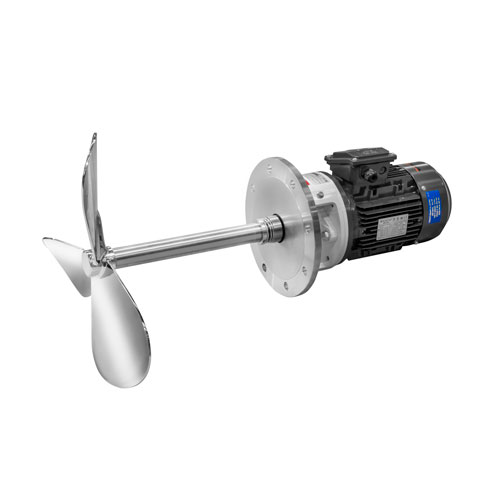

LR/LM Side-entry Agitator

The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry. The main application is agitation of low viscosity products like wine, oil, milk, beer, alcohol, etc. in large volume tanks.

The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.

LR/LM is economical for use in large volume tanks.

The propeller fixed to the shaft by means of a threaded connection and a gasket.

Technical informations

Features:

Helical geared motors with food-grade oil; Motor: 3 ph, 230/400 V, 50 Hz, IP55, 1500 rpm; Marine propeller (Type10).

Used materials

Parts in contact with the product: AISI 316L

Lantern and bearing support: GG 15

Mechanical seal: C/SiC/EPDM

Gaskets: EPDM

Surface finish: Ra ≤ 0,8 μm
