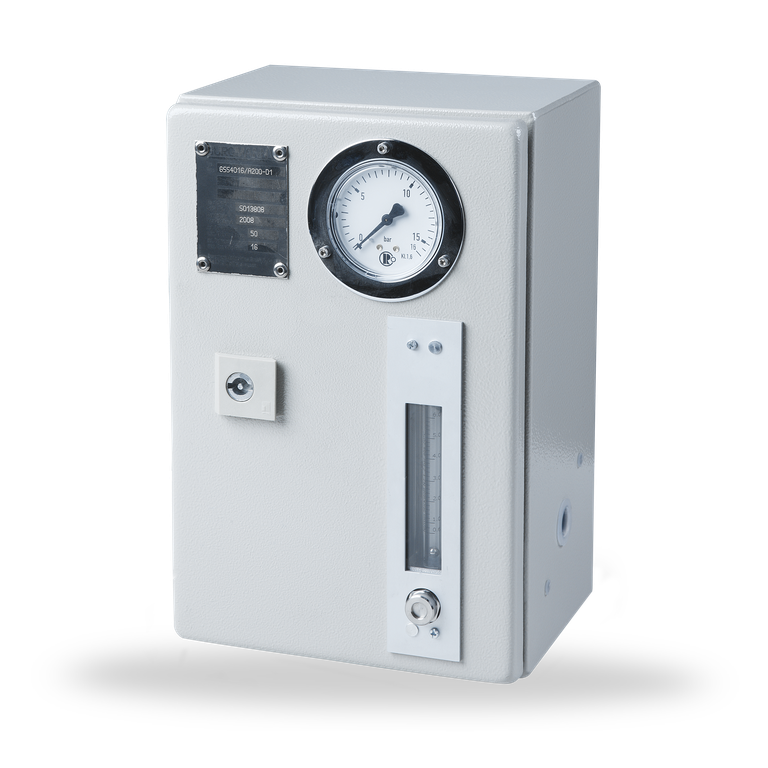

GSS - Gas supply system

Gas supply systems of the GSS range are specially designed for contact-free operated, gas-lubricated mechanical seals. The gas supplied from the supply network (e.g. air or nitrogen) is regulated/monitored by the GSS in accordance with the requirements of the seals being supplied. The GSS systems are equipped with alarm and/or switch-off points depending on specific safety requirements. Centralized monitoring of the measurement values is also possible on request.



Main GSS functions:

• - Filtering of the buffer and flushing gas
• - Pressure monitoring and regulation
• - Flow monitoring



Typical tasks for the GSS:

• - Buffer/barrier gas supply for double seals
• - Gas flushing for single seals
• - Gas supply for tandem seals

Technical informations

• - Available with a wide range of different instruments
• - Safe operation thanks to incorporated pressure regulator with integrated filter
• - System mounted on a plate or in housing
• - Three variants of the housing version available: painted steel, stainless steel, glass fabric
• - Easy wall or rack mounting
• - For operating pressures of up to 16 bar (232 PSI)
