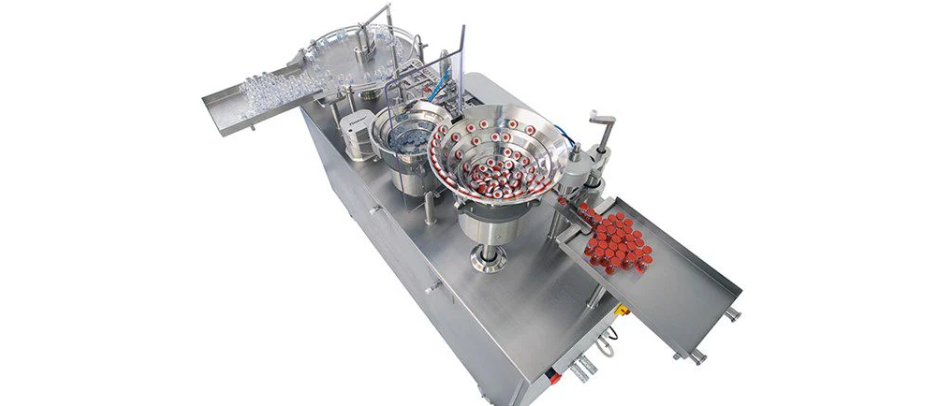

FPC50 filling, stoppering and capping system

FPC50 can be customised to fit different sizes of trays at the infeed and at the outfeed. The infeed tray can be positioned on the front of the FPC50 or on the left side of the unit.

Designed for use under laminar air flow or in a restricted access barrier system, the FPC50 is available as a customised solution for integration into an isolator.

Providing fast and easy changeover between batches, the FPC50 handles up to 25 vials per minute and uses a minimum of space in a cleanroom. High filling accuracy prevents costly overfilling.

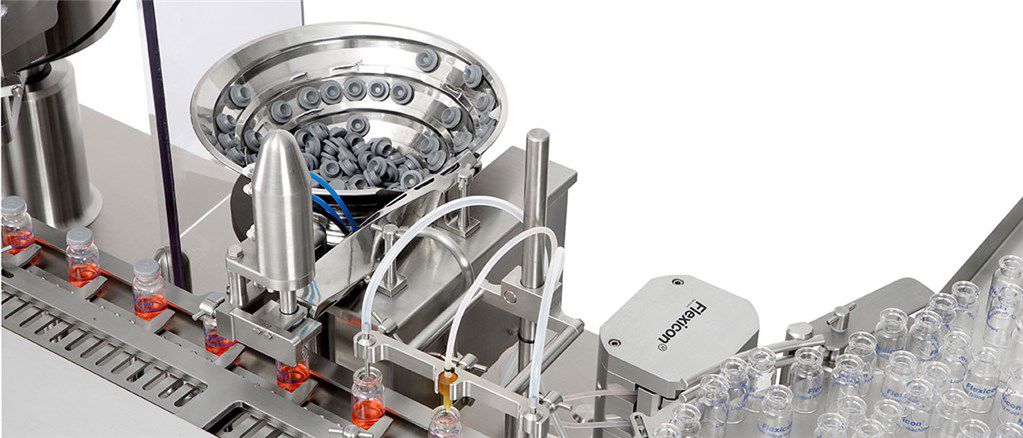

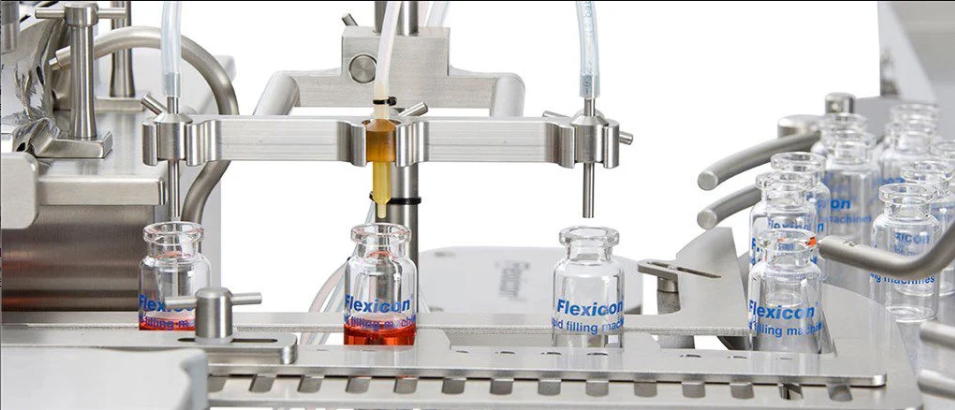

Filling is done by the integrated, highly accurate peristaltic dispenser, which can give an optimum filling accuracy for volumes from micro-volumes. This feature prevents costly overfilling of expensive liquids. As an option, the unit can do automatic gas purging before, during and after the liquid filling process.

Technical informations

• - Single-use fluid path and peristaltic pump for simple cleaning validation and no cross contamination
• - Full qualification and validation support
• - Faster changeover time with no format parts for vials and universal format parts for stoppers and crimp/roller caps
• - In Process Control (IPC) with optional in-line check weighing
• - FDA 21 CFR Part 11 compliant
• - Full batch reports
• - Compatible with ISO8362 components
• - Prepared for barrier systems (RABS) in accordance with Annex 1
