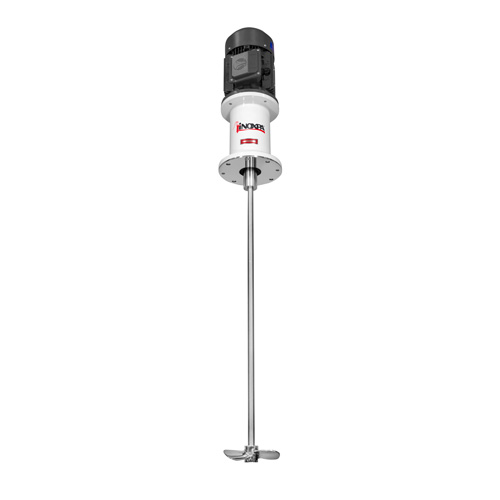

BMI Vertical Agitator

The BMI series comprises a range of vertical agitators with direct drive.

Agitators can be used in mixing, dissolution, dispersion, and maintenance processes requiring strong agitation at high speeds, as well as in the food processing, cosmetics, and chemical industries, selecting the appropriate finish in each case.

Applicable to tanks with capacities of up to 10,000 litres, usually with low viscosity products.

The agitators are usually installed off-centre to prevent product rotation but can also be installed centred in conjunction with deflector baffles in the tank.

Technical informations

Features:

Motor IEC B5, 4 poles, IP55, F-class insulation; Maximum power 5,5 kW; Marine propeller (type 10).

Materials:

Parts in contact with the product: AISI 316L

Retainer ring: NBR

Bearing support: Aluminium

Base plate: AISI 316L

Surface finish: (except sawtooth propeller) Ra ≤ 0,8 μm
