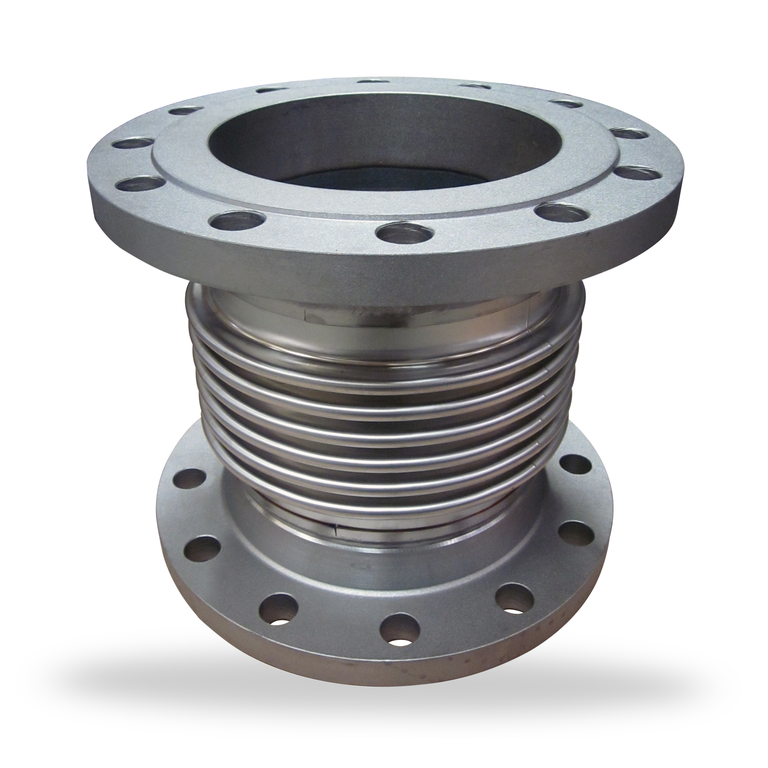

AX Type expansion joints

Features

• - Untied custom metal expansion joints for general pressure applications
• - Designed to cover the mid temperature and pressure range for general process equipment
• - Mainly intended for axial movements
• - Multiply bellows with low spring rate and high cycle life

Advantages

• Covers many applications (ranging from water treatment through steam lines to fluid / gas media transport lines); Highly customizable design: Bellows geometry, material options and combinations.

Technical informations

Diameter: DN 40 ... DN 5,000 (1.5" ... 200”)
Temperature: ... 700 °C (1,292 °F)
Pressure: max. 80 barg (1,160 PSIG)
