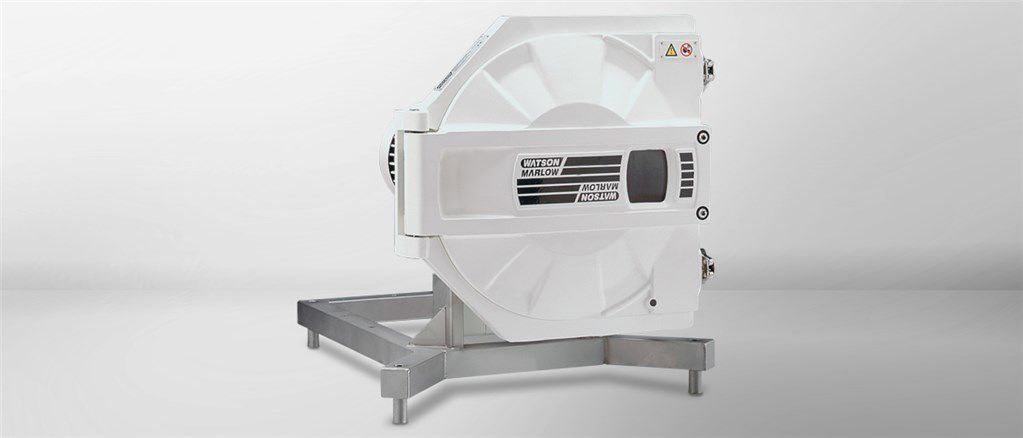

800 series high flow hygienic pumps

Designed for low-shear sanitary pumping duties up to 8,140 L/h (35 GPM) and pressures up to 3.5 bar (50 psi) in the biotechnology, pharmaceutical and food industries, 800 series pumps feature a true CIP (clean-in-place) and SIP (steam-in-place) facility. The twin stainless steel rollers disengage to lift off the USP Class VI Bioprene or GORE STA-PURE PCS tube, allowing a straight-through path for cleaning. There are no "dead spots" or crevices. Mounted on a steel frame, 800 series pumps are available with fixed speed motor gearboxes or inverter-rated variable speed motor gearboxes providing 4 mA to 20 mA or 0 V to 10 V process control, as well as remote stop/start and reverse.

• - Self-priming and dry running, with no valves, seals or glands
• - Door proximity sensor, to enable safe access during tube changes or cleaning
• - Options for Bioprene and STA-PURE elements, to USP Class VI and hygienic stainless steel connectors certified to 3.1.B BS/EN 10204
• - Ideal for viscous or shear sensitive products
• - Motor/gearbox and control options include fixed speed, variable speed with mechanical variators, fixed speed motors with inverter control for 4 mA to 20 mA and 0 V to 10 V process control, remote stop/start and reverse and frequency output
• - Pumpheads to accept B5 output flange-mounted gear motors in a range of single and three phase fixed and electronic variable speeds
