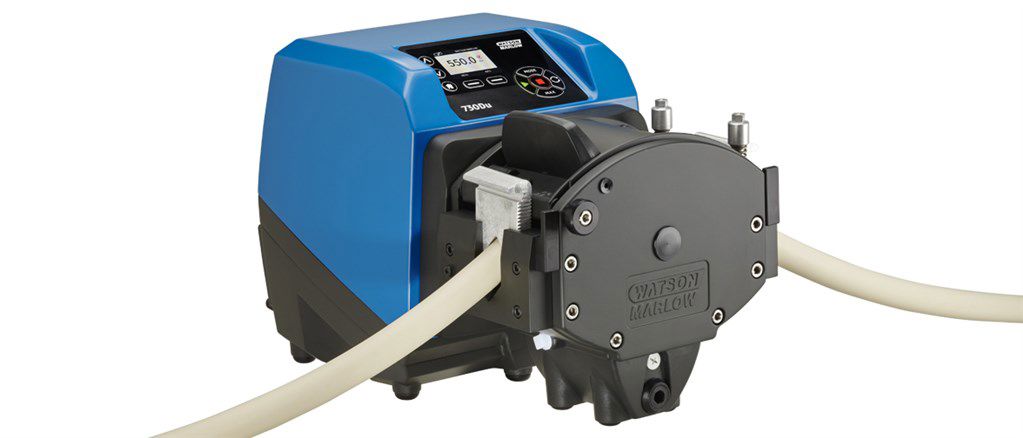

730 series process pumps

730SN, 730UN, 730DuN and 730BpN peristaltic process pumps fitted with continuous tubing or tube element pumpheads.

730 series process pumps offer:

• - Colour display and intuitive menu structures provide visual status indication and minimal key presses
• - Flow rates from 0.12 L/h (0.03 USGPH) to 3300 L/h (872 USGPH)
• - 3,600:1 speed control range from 0.1 to 360 rpm in 0.1 rpm increments
• - Keypad incorporates 3-level security PIN lock
• - IP66 (NEMA 4X) cased pumps
• - Dual voltage 115/230 V 50/60 Hz
• - Remote Analogue/Digital, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options

Technical informations

Max. flow rate: 3300 L/h

Min. flow rate: 0.12 L/h

Drive speed control ratio: 3600:1

Operating temperature range: 5 °C to 40 °C
