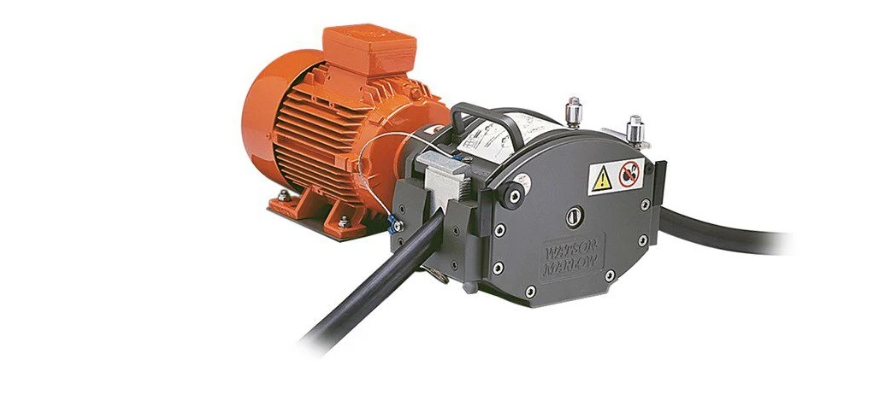

700 series close-coupled pumps

Watson-Marlow 701FB/RE and 701FB/R: 0 bar to 2 bar fixed-speed IP55 pumps fitted with LoadSure tubing element pumpheads or continous tubing.

701 close coupled pumps offer IP55 ingress protection for rugged, but at the lowest whole-life cost.

• - A choice of fixed speeds: 45 rpm, 134 rpm, 232 rpm and 348 rpm. Other speeds on request
• - LoadSure tubing elements in four sizes and five materials, with industrial cam-and-groove connectors or sanitary Tri-clamp-style connectors
• - Continuous tubing in five bore sizes and six materials
• - Rugged, chemical and knock-resistant finish; tool-unlockable track
• - Driven occlusion rollers for longer tube life

Technical informations

Max. operating speed: 360 rpm

Max. flow rate: 2000 L/h

Min. flow rate: 53 L/h

Max. operating pressure: 2 bar
