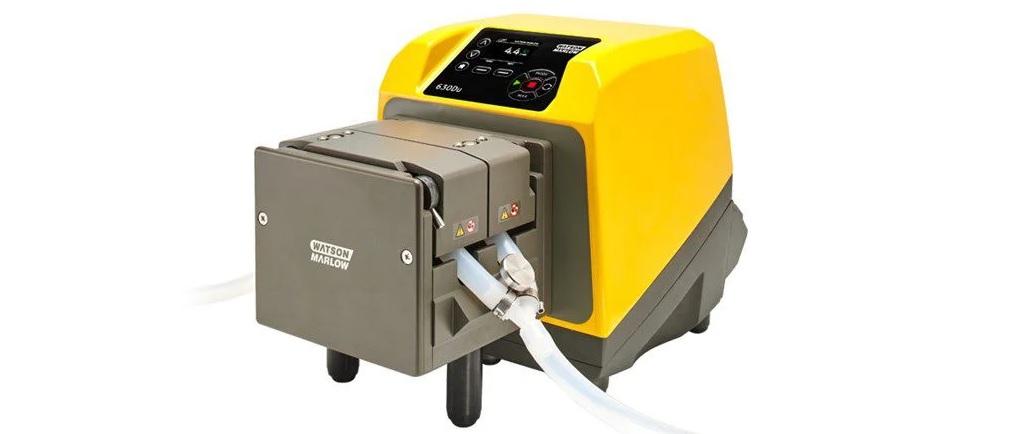

630 series process pumps

630 series process pumps offer:

• - Colour display and intuitive menu structures provide visual status indication and minimal key presses
• - Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options
• - 620R, 620RE, 620RE4, 620L and 620LG pumpheads available
• - 2,650:1 speed control range from 0.1 rpm to 265 rpm in 0.1 rpm increments
• - Keypad incorporates 3-level security PIN lock
• - IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps available
• - Dual voltage, 115 V/230 V 50/60 Hz
• - Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options

Technical informations

Max. flow rate: 18 L/min

Min. flow rate: 0.001 L/min

Drive speed control ratio: 2650:1

Operating temperature range: 5 °C to 40 °C
