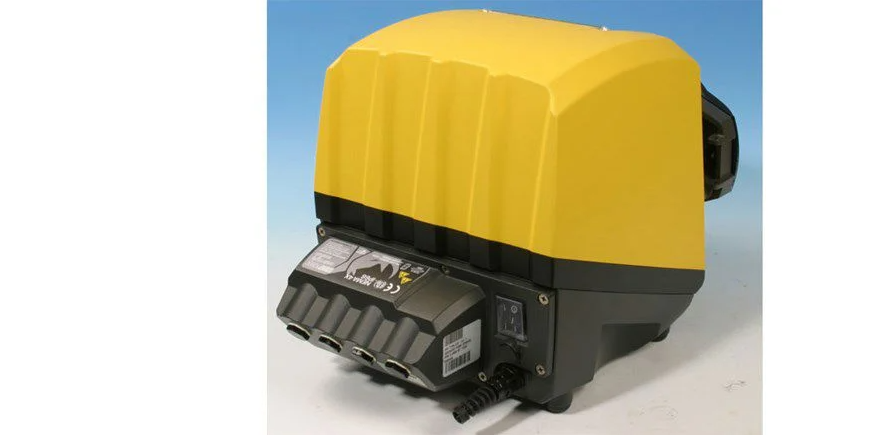

620Di dispensing pumps

620Di pumps combine industrial power and durability with unrivalled precision, pumping up to 18 L/min and achieving pressures up to 4 bar. The pump can store 50 dispensing programs using the simple screen-keypad interface. The pump outputs batch records for cGMP requirements.

Accurate, fast dispensing for ultimate batch consistency. Dispenses 500 ml in 3.5 seconds with ±0.5 % accuracy.

Technical informations

• - Keypad entry of flow from 0.001 L/min to 18 L/min
• - 2650:1 control ratio (0.1 to 265 rpm speed range)
• - Digital speed adjustment with choice of 0.1 rpm, 0.5 rpm, 1 rpm, 2 rpm, 5 rpm and 10 rpm step changes
• - Maintenance-free brushless DC motor
• - Smooth easy-to-clean enclosure free from bug traps
