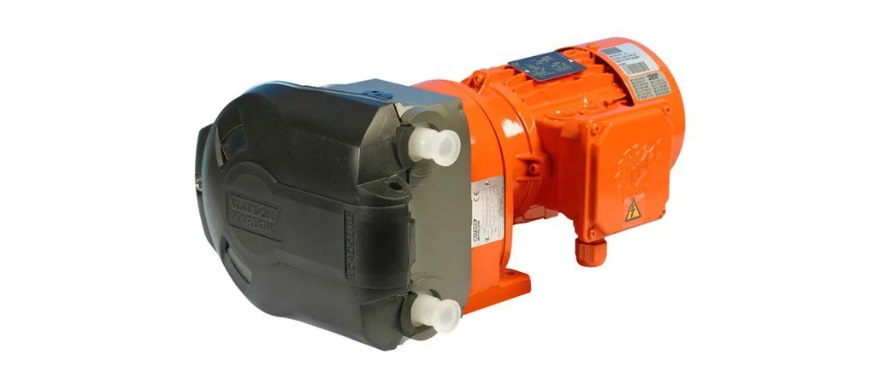

600 series close-coupled pumps

621 close-coupled pumps offer IP55 ingress protection for light industrial environments.

621VI Varmeca close-coupled drives bring 10:1 speed control, constant torque output and total reliability to the industrial environment. The drive offers 230 V and 400 V three-phase power options, plus 110 V and 230 V single-phase. Control is by a large speed knob and forward/reverse switching.

• - Discharge pressures up to 4 bar with element style pumpheads
• - 620RE two roller or 620RE4 four roller pumphead with CIP/SIP rotor and rapid snap-fit tube loading, pumphead accepts both 12 mm and 17 mm industrial and sanitary LoadSure elements
• - Compact design with foot mounted gearbox
• - 24-hour continuous duty with a two-year warranty
• - Reversible operation
• - Fixed Speed options: 230/460 VAC, 60 Hz 3-phase or 120/240 VAC, 60 Hz, 1-phase. Variable speed options supplied with 230/3/60, 460/3/60, 120/1/60 or 220/1/60 Variable frequency drive

Technical informations

Max. operating speed: 250 rpm

Max. flow rate: 18 L/min

Min. flow rate: 0.92 L/min

Max. operating pressure: 4 bar
