500 series process pumps

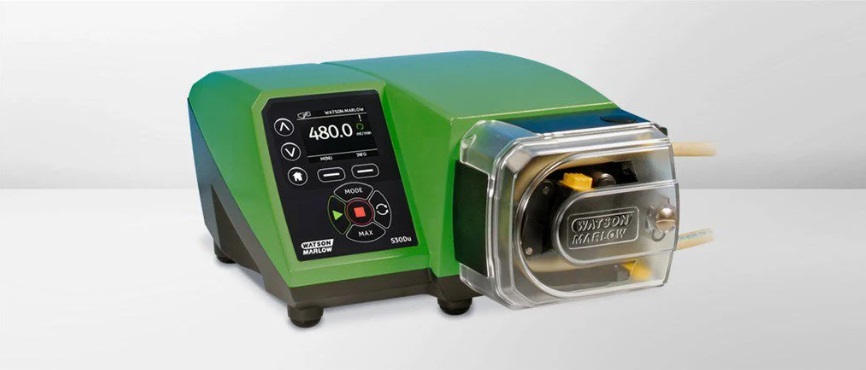

530 series peristaltic pumps deliver unrivalled accuracy with simple-to-use HMI requiring minimal key presses during operation. Fluid is fully contained within the tube, providing complete isolation of the pump. Maintain product integrity with visual status indication and an intuitive user interface.

• - Colour display and intuitive menu structures provide visual status indication and minimal key presses
• - Flow rates from 0.004 ml/min (0.0006 USGPH) to 3.5 L/min (55.48 USGPH)
• - 520R, 520R2, 520REL, 520REM, 520REH, 520RET and 505L pumpheads available as standard, others available on request
• - 2,200:1 speed control range from 0.1 rpm to 220 rpm in 0.1 rpm increments
• - Keypad incorporates 3-level security PIN lock
• - IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps
• - Dual voltage, 115 V/230 V 50/60 Hz
• - Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options



Technical informations

Drive speed control ratio: 2200:1

Operating temperature range: 5 °C to 40 °C

Max. flow rate: 3500 ml/min

Min. flow rate: 0.004 ml/min
