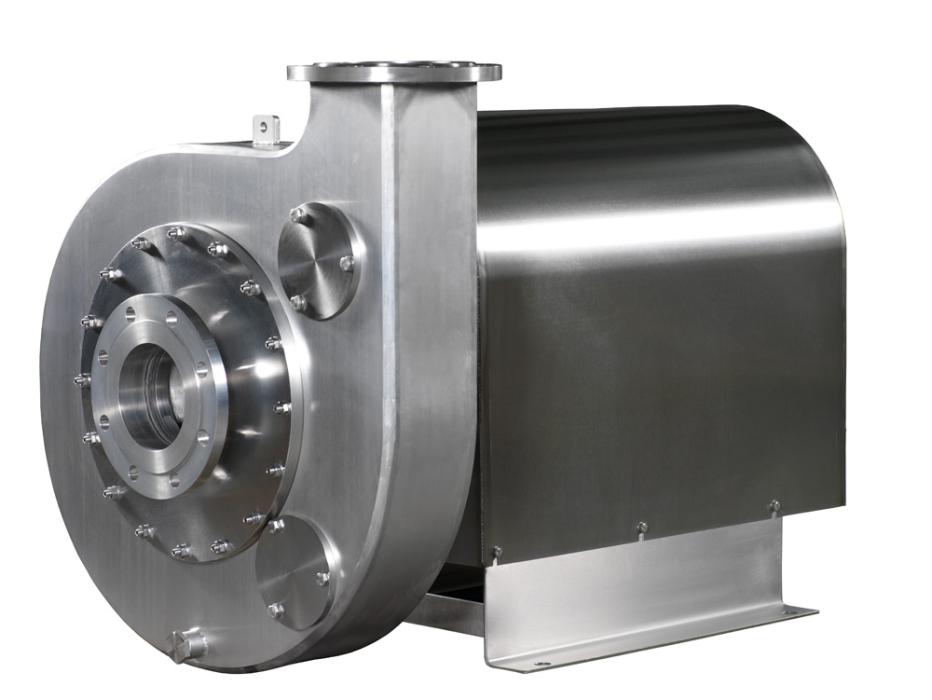

1-Channel pumps CP AGF
The Pomac CP-AGF program comprises a range of stainless steel pumps, suited to pump potatoes, vegetables and fruits, without damaging them.

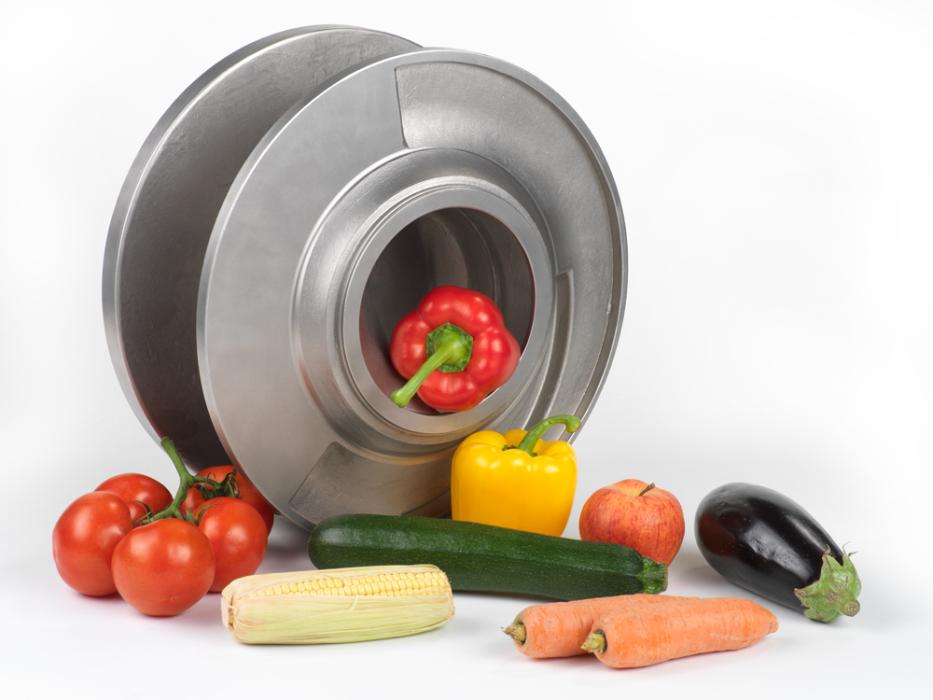

The pumps can be supplied with a one-channel or a two-channel impeller. The impeller hub is mounted directly to the motor shaft, this results in a minimal overhang and a short build. The impeller can easily be removed without dismantling the pump casing.
The pump casing is provided with inspection covers, which permits inspection of the pump’s interior without prior dismounting and disassembling it.
Technical informations
The pumps are available in 3 build sizes:
|
Type |
Capacity m3/h |
Pressure Mwc max |
Sphere passage mm |
Connection |
|
CP500 AGF |
150 |
20 |
80 |
DN100/DN100 |
|
CP750 AGF |
350 |
20 |
150 |
DN150/DN150 |
|
CP1000 AGF |
550 |
20 |
200 |
DN200/DN200 |
|
Max. Viscosity |
< 500 cP |
|
Capacity |
< 500 m³/h |
|
Pressure |
< 30 mwc |
|
Impeller |
S-Vane |
|
Materials |
1.4301 or 1.4404 |
|
Connections |
DN100 tot DN200 acc. EN1092-1 |
|
Sealing |
Bellow seal |
|
Elastomers |
EPDM of Viton |
|
Surface roughness |
Standard < 1,6 micron |
